SW060A-CF_SF
High Pressure Self-Rotating Cleaning Head for Sector Cleaning
The SW060A-CF_SF is a self-rotating cleaning head designed for sector cleaning applications, engineered for targeted cleaning of open containers, bins, and drums.
It is the ideal solution when cleaning action must be concentrated on a specific area, avoiding unnecessary water dispersion.
It is widely used across various industrial sectors, including environmental services, oil & gas, and general industry, where robustness, process control, and water consumption optimization are critical factors.
Type
Sector
Self-rotating head with flow-priority design, available with or without filter and featuring a coaxial inlet. Versions available with 2 or 4 nozzles.
Acquamotor
Certification
Motor
Why choose SW060A-CF_SF
In open containers, full volumetric cleaning is not always required.
The SW060A-CF_SF is designed to operate within a defined cleaning sector, reducing water consumption outside the areas that actually need to be treated.
Thanks to its adjustable rotation speed, it allows fine tuning of the cleaning cycle according to operational requirements, improving both efficiency and process control.
It is the ideal solution for operators who:
- need to clean open containers or drums
- want to optimize water consumption
- require operating pressures up to 200 bar
Concrete advantages for the operator
- Targeted cleaning without water waste
- Adjustable rotation speed
- Flexible configuration with 2 or 4 nozzles
- Available with or without filter
- Available in AISI 316 stainless steel or aluminum
- High reliability even in harsh environments
The result is a system that combines power, precision, and reduced resource consumption.
Main Technical Features
- Operating pressure up to 200 bar
- Flow rate up to 60 l/min
- Available with or without integrated filter
- 2 or 4 nozzle configuration
- Adjustable rotation speed
- Body available in AISI 316 stainless steel or aluminum
Installation, Maintenance and Certifications
The SW060A-CF_SF is easy to integrate into existing equipment and is designed to ensure long-term reliability.
Maintenance is limited to standard inspection of wear components, thanks to its simple and robust design.
Supplied with:
- CE certification
If your objective is to focus cleaning only where needed while reducing water consumption and optimizing cycle times, the SW060A-CF_SF provides a powerful and versatile technical solution.
The Bolondi team is available to support you in selecting the most suitable configuration or developing custom solutions based on your specific system requirements.
Product details | |
|---|---|
Filter | 700 micron |
Nozzles | 1/8” G |
Seal materials | NBR – EPDM – VITON |
Structure materials | AISI 316 – Aluminum |
Inlet hole | Ø 100 mm |
Rotation speed | 80 ÷ 120 rpm |
Full cycle duration | 20 ÷ 30 sec |

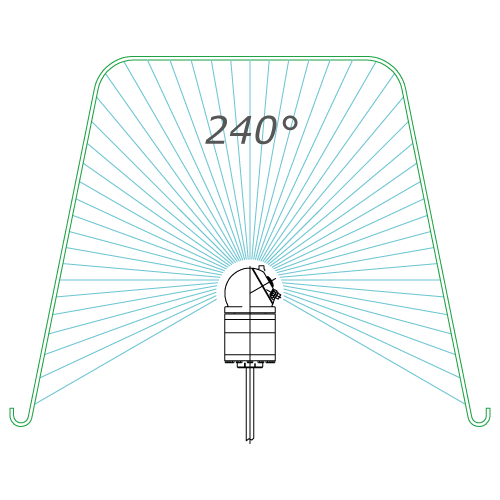

Washing coverage | 240° |
Weight | 5.5 kg |
Max temperature | 90 °C |
Technical information | |
|---|---|
Pressure | 10 - 200 bar |
Flow rate | 10 - 60 l/min |
