XC020+Asp
Volumetric Rotating Cleaning Head with Integrated Suction for Barrique Cleaning

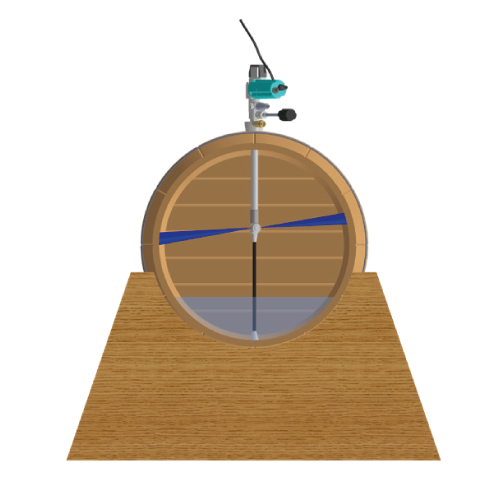

The XC020+ASP is a volumetric rotating cleaning head designed for cleaning barriques and small closed containers, featuring a distinctive advantage: it combines cleaning and liquid suction within a single unit.
It is a dedicated solution for the wine industry, where it is essential not only to perform effective cleaning but also to remove the washing water immediately, preventing the accumulation of contaminated residual liquid inside the barrel.
Type
Internal
Head capable of washing and suction simultaneously, making it the ideal solution for efficient cleaning of barriques and tonneaux, as it is easy to handle even in confined spaces. Equipped with a 12 V DC gear motor and a 10-meter power cable, it offers excellent flexibility in installation and use. With the standard configuration, it can wash/suction up to 500 liters.
Electrical
Certification
Motor
Why choose XC020+ASP
In barrique cleaning, one of the main challenges is managing residual water after the washing cycle.
The XC020+ASP addresses this issue by performing cleaning and drainage in a single operation, optimizing workflow efficiency and reducing processing time in winery operations.
The result is a barrique that is:
- uniformly cleaned
- immediately free from dirty residual water
- ready for subsequent processing stages
It is the ideal solution for operators who:
- manage large volumes of barriques
- need to reduce cleaning cycle times
- require an integrated cleaning and suction system
Concrete advantages for the operator
- Combined cleaning and suction in a single unit
- Immediate removal of residual water after cleaning
- Faster operational workflow in winery environments
- Compact and easy-to-handle system
- Optimized drainage time
The integration of both functions simplifies the cleaning process and significantly improves operational efficiency.
Main Technical Features
- Operating pressure up to 120 bar
- Flow rate up to 25 l/min
- 12 V electric motor
- Integrated cleaning and suction system
- Designed for small closed containers
Installation, Maintenance and Certifications
The XC020+ASP is easy to install and designed for practical use in winery environments.
Maintenance is limited to standard inspection of wear components, thanks to its compact and functional design.

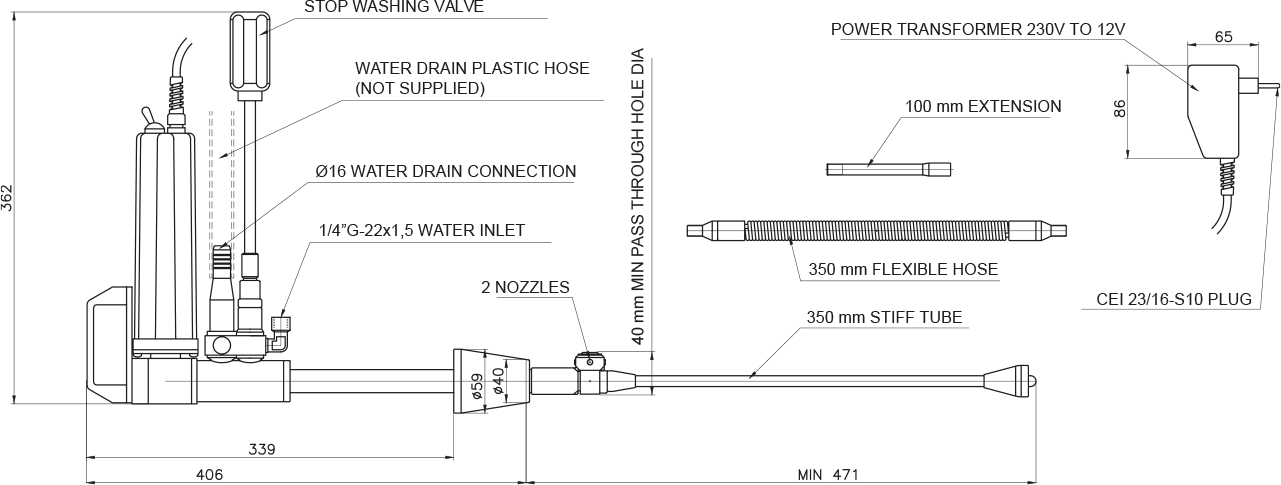

Supplied with:
- CE certification
If you are looking for a solution that combines cleaning and drainage in a single system, optimizing the process and leaving the barrique ready for reuse, the XC020+ASP provides an effective and dedicated technical solution for the wine industry.
The Bolondi team is available to support you in selecting the most suitable configuration or developing custom solutions tailored to your winery operations.
Product details | |
|---|---|
Filter | 700 micron |
Nozzles | 2 |
Seal materials | NBR |
Structure materials | AISI 316 |
Inlet hole | Ø 40 mm |
Rotation speed | 10 rpm |
Electric motor | 12 V DC |
Weight | 3.1 kg |
Max temperature | 90 °C |
Technical information | |
|---|---|
Pressure | 10 - 120 bar |
Flow rate | 15 - 25 l/min |
Product details | |
|---|---|
Filter | 700 micron |
Nozzles | 2 |
Seal materials | NBR |
Structure materials | AISI 316 |
Inlet hole | Ø 40 mm |
Rotation speed | 10 rpm |
Electric motor | 12 V DC |
Weight | 3.1 kg |
Max temperature | 90 °C |
Technical information | |
|---|---|
Pressure | 10 - 120 bar |
Flow rate | 15 - 25 l/min |
