MW586A

Acquamotor

Volumetric Rotating Head for Ultra-High-Pressure Heavy-Duty Cleaning

MW586A

Volumetric Rotating Head for Ultra-High-Pressure Heavy-Duty Cleaning

The MW586A Volumetric Rotating Head is designed to handle ultra-high-pressure cleaning in demanding industrial applications.


 It is the ideal solution when residues are particularly stubborn and difficult to remove-such as water-based paints or highly adhesive products-and when High-impact cleaning must be concentrated within limited spaces.


The MW586A is successfully used for cleaning IBC containers, tanks, tanker trucks, and silos, especially in the chemical, coatings, and mining industries, where operating conditions are severe and cleaning effectiveness is a critical requirement.



Type

Internal

Self-rotating, oil- and grease-free flow-priority head, washes with two or four nozzles. Equipped with a filter and coaxial delivery, it features a low rotation speed and can operate at very high pressures of up to 500 bar.

Acquamotor

Certification

Motor

Why choose the MW586A

The real strength of the MW586A lies in the combination of ultra-high pressure up to 500 bar and low flow rate, allowing extremely targeted action on Equipment internals. The low rotation speed enables the jet to remain longer on each surface area, significantly improving cleaning effectiveness even against the most stubborn residues.


The MW586A is designed for users who:

  • need to remove difficult and strongly adhering deposits
  • require ultra-high-pressure cleaning for demanding applications
  • are looking for a compact yet extremely high-performance cleaning head

Concrete advantages for the operator

  • Operating pressures up to 500 bar for extreme cleaning applications
  • Compact dimensions combined with high performance
  • Deep and targeted cleaning thanks to low rotation speed
  • Ideal for severe residues such as water-based paints

High reliability even in Heavy-duty applications

Main technical features

  • Reduced flow rate: 60 l/min
  • Operating pressure up to 500 bar
  • Configuration with 2 or 4 nozzles
  • Low rotation speed for precise and effective cleaning

Installation, maintenance and certifications

The MW586A can be easily integrated into existing cleaning systems and does not require special installation solutions. It is engineered for long-term reliability and requires only standard maintenance on wear components.


Available on request:

  • CE certification
  • ATEX certification

If you need a Volumetric Rotating Head capable of delivering High-impact cleaning even on difficult residues, the MW586A is a high-performance technical solution.


The Bolondi team is available to help you select the most suitable configuration or develop customized solutions tailored to your specific application requirements.

Product details
Filter
700 micron
Nozzles
1/4” NPT
Seal materials
NBR – EPDM – VITON
Structure materials
PTFE + carbon fiber – AISI 316
Inlet hole
Ø 180 mm
Rotation speed
From 5 to 16 rpm

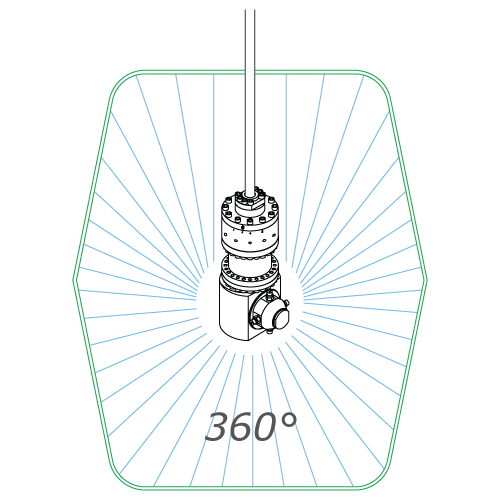

Washing coverage
360°
Weight
9.6 kg
Max temperature
90 °C
Technical information
Pressure
10 - 500 bar
Flow rate
10 - 60 l/min
Product details
Filter
700 micron
Nozzles
1/4” NPT
Seal materials
NBR – EPDM – VITON
Structure materials
PTFE + carbon fiber – AISI 316
Inlet hole
Ø 180 mm
Rotation speed
From 5 to 16 rpm
Washing coverage
360°
Weight
9.6 kg
Max temperature
90 °C
Technical information
Pressure
10 - 500 bar
Flow rate
10 - 60 l/min
