ROTY 018
Electrical
ROTY 018

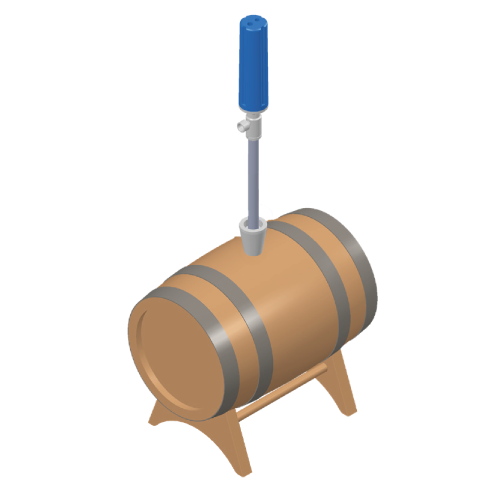

Dedicated System for Barrique and Small Barrel Cleaning
The ROTY 018 is a system specifically engineered for cleaning barriques and small barrels, addressing the precise requirements of the wine industry, where accuracy, ease of use, and operational continuity are essential.
Winery operators understand the importance of effective internal cleaning of barrels, especially when arranged in rows.
The ROTY 018 enables efficient cleaning of small barrels, ensuring consistent results and simple operation, with the ability to quickly move the unit between different workstations.
Type
Internal
rotating head without oils and greases
Electrical
Certification
Motor
Why choose ROTY 018
This system is designed to make barrique cleaning simpler, faster, and fully manageable by the operator.
Its compact structure and ease of handling allow continuous operation, even in limited spaces.
It is the ideal solution for operators who:
- manage large numbers of barriques or small barrels
- require a machine that can be easily moved within the winery
- are looking for a dedicated solution tailored to the wine industry
Concrete advantages for the operator
- Specifically designed for barrique and small barrel cleaning
- Suitable for use across multiple barrels in sequence
- Easy to move between different working areas
- Direct flow rate adjustment via the supplied nozzle kit
- Immediate operation without the need for complex technical intervention
Main Technical Features
- Washing lance available upon request
- Operating pressure up to 150 bar
- 12 V electric motor
- Standard nozzle kit for easy flow rate adjustment
Installation, Maintenance and Operation
The ROTY 018 is designed for seamless integration into winery operations, without the need for complex installation procedures. It is easy to handle and requires only standard maintenance of wear components.
Flow rate adjustment can be carried out directly by the operator, making the system highly practical for daily use.
If you are looking for a dedicated and efficient solution for barrique and small barrel cleaning, the ROTY 018 is a targeted choice for the wine industry.
The Bolondi team is available to support you in configuring the most suitable solution for your winery or developing custom options based on your specific operational requirements.
Product details | |
|---|---|
Nozzles | 2 nozzles 1/4” NPT |
Seal materials | NBR |
Structure materials | AISI 316 |
Inlet hole | Ø 42 mm |
Electric motor | 12 V DC |
Power cable | 10 m + transformer and plug |
Weight | 3.1 kg |
Max temperature | 90 °C |
Technical information | |
|---|---|
Pressure | 10 - 150 bar |
Flow rate | 8 - 18 l/min |
