RT105-P
Low Pressure Rotating Cleaning Head with Controlled Speed
The RT105-P is a low pressure rotating cleaning head designed to perform precise and dynamic cleaning in small tanks and mixers, maintaining a simple construction while offering a key technical advantage:
rotation speed controlled independently from flow rate and pressure.
It is particularly suitable for the food, pharmaceutical, cosmetic, and chemical industries, especially in applications involving powders or light products, where uniform, gentle, and consistent internal cleaning is required.
Type
Linear movement
A rotating head whose rotation is generated by the force of the liquid. The innovation of this head lies in the speed control system, which maintains constant speed even when the flow rate/pressure varies.
Acquamotor
Certification
Motor
Why choose RT105-P
Many low pressure cleaning heads vary their rotation speed depending on operating parameters.
The RT105-P, on the other hand, ensures controlled rotation, delivering more accurate and repeatable cleaning performance.
This results in improved uniformity and better process control, even under variable operating conditions.
It is designed to provide cost-effective dynamic cleaning with a higher level of control compared to conventional solutions.
It is the ideal solution for operators who:
- need to work with vessels featuring small access openings (≥ 22 mm)
- require a simple system with more precise rotation control
- seek low-cost dynamic cleaning with enhanced process consistency
Concrete advantages for the operator
- No external energy source required beyond pressurized water
- Controlled rotation independent of flow rate and pressure
- Suitable for installation through small openings (≥ 22 mm)
- Compact AISI 316 stainless steel construction
- High reliability with reduced maintenance requirements
Main Technical Features
- Flow rate up to 30 l/min
- Operating pressure up to 10 bar
- Fully AISI 316 stainless steel construction
- Designed for easy installation inside vessels
- Ideal for small tanks and mixers
Installation, Maintenance and Certifications
The RT105-P is designed for easy integration into equipment to be cleaned, even where access openings are limited.
It does not require additional power sources and only standard mintenance of wear components is needed.
Available with CE certification.
If you are looking for a low pressure rotating cleaning head that combines simple construction with controlled rotation for more precise cleaning, the RT105-P provides an effective and cost-efficient technical solution.
The Bolondi team is available to support you in selecting the most suitable configuration or developing custom solutions based on your specific process requirements.
Product details | |
|---|---|

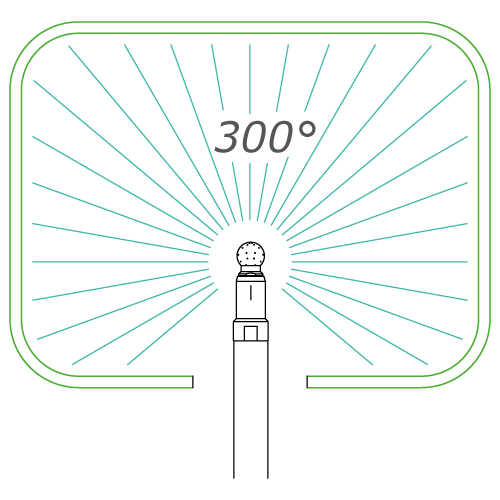

Coverage angle | 300° |
Applications | Mixer cleaning, tank cleaning, internal machine cleaning |
Technical information | |
|---|---|
Pressure | 1 - 10 bar |
Flow rate | 8 - 26 l/min |
Product details | |
|---|---|
Coverage angle | 300° |
Applications | Mixer cleaning, tank cleaning, internal machine cleaning |
Technical information | |
|---|---|
Pressure | 1 - 10 bar |
Flow rate | 8 - 26 l/min |
