SW053A
Acquamotor
SW053A
Self-Rotating Cleaning Head for Sector Cleaning Applications
The SW053A is a self-rotating cleaning head specifically designed for sector cleaning, making it ideal for applications where cleaning action must be focused on defined areas without wasting water on unaffected surfaces.
It is particularly suitable for cleaning open containers, bins, drums, and internal parts of industrial machinery, where optimizing water consumption is a key requirement.
Type
Sector
Self-rotating head with flow priority, with filter and coaxial delivery. Versions with 2-3-4 nozzles.
Acquamotor
Certification
Motor
Why choose SW053A
The SW053A is engineered to operate within a defined cleaning sector, avoiding unnecessary water dispersion outside the targeted area.
This results in:
- reduced water consumption
- shorter cleaning cycles
- improved operational efficiency
It is the ideal solution for open containers where full volumetric cleaning is not required.
Concrete advantages for the operator
- Targeted cleaning on a defined sector
- Significant reduction in water consumption
- Optimized resource usage
- Configurable with 2, 3, or 4 nozzles
- Compact design with reduced weight
- High corrosion resistance
The ability to configure the number of nozzles allows adaptation to different pressure, flow rate, and coverage requirements.
Main Technical Features
- Operating pressure up to 150 bar
- Flow rate up to 60 l/min
- Body in AISI 316 stainless steel
- Hemispherical head in aluminum or brass
- Prepared for bevel gear self-cleaning system
- Available with 2, 3, or 4 nozzle configuration
Installation, Maintenance and Certifications
The SW053A is easy to integrate into existing equipment.
Maintenance is limited to standard inspection of wear components, thanks to a design that minimizes the need for frequent servicing.
Supplied with:
- CE certification
If your objective is to optimize water consumption and concentrate cleaning action only where needed, the SW053A provides an efficient and reliable technical solution.
The Bolondi team is available to support you in selecting the most suitable configuration for your specific application.
Product details | |
|---|---|
Structure materials | AISI 316 – Aluminum – Brass |
Filter | 700 micron |
Nozzles | 1/8” NPT |
Seal materials | NBR – EPDM – VITON |
Inlet hole | Ø 88 mm |
Rotation speed | 80 ÷ 120 rpm |
Full cycle duration | 20 ÷ 30 sec |

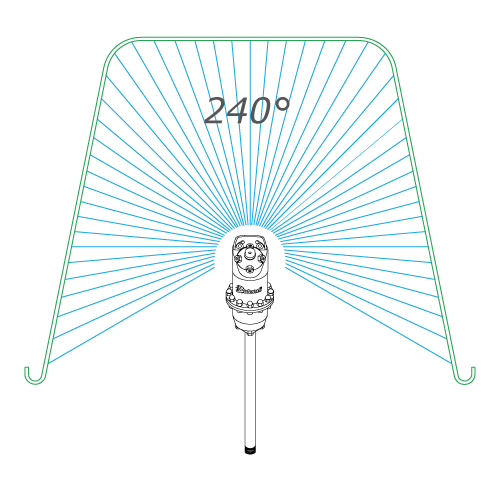

Washing coverage | 240° |
Weight | 3 kg |
Max temperature | 90 °C |
Technical information | |
|---|---|
Pressure | 10 - 150 bar |
Flow rate | 10 - 60 l/min |
