XM015-E

Electrical

Compact Volumetric Rotating Cleaning Head with 24V DC Electric Motor

XM015-E

Compact Volumetric Rotating Cleaning Head with 24V DC Electric Motor

The XM015-E is a compact volumetric rotating cleaning head designed for cleaning small closed containers, ideal when compact size, controlled rotation, and compliance with the most stringent hygienic standards are required.


It is particularly suitable for the pharmaceutical, food, cosmetic, and chemical industries, with a design compliant with cGMP requirements.

Type

Internal

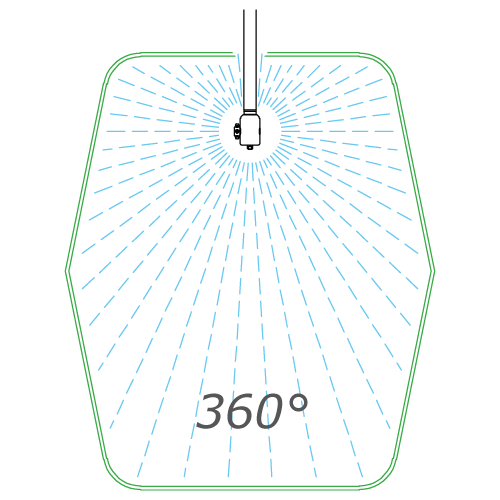

Motorized or self-rotating rotating head without oils and grease, washing is performed at low pressure with 2 or 4 nozzles. Lateral delivery for the electric and pneumatic versions, coaxial delivery for the aquamotor version.

Electrical

Certification

Motor

Why choose XM015-E

In small containers, both the positioning of the cleaning head and the stability of rotation are critical to achieving uniform results. The XM015-E provides:

  • Customizable lance length for optimal positioning
  • 24V DC electric motor, making rotation speed independent of water flow
  • Adjustable rotation speed based on application requirements

This ensures controlled and repeatable cleaning performance, even in the presence of pressure or flow variations.

It is the ideal solution for operators who:

  • require precise rotation control
  • work with small closed containers
  • operate in regulated environments

Concrete advantages for the operator

  • Operating pressure up to 10 bar
  • Flow rate up to 15 l/min
  • 24V DC electric motor
  • Controlled rotation speed
  • Configurable with 2 or 4 nozzles
  • Exposed nozzles selected according to application
  • Self-cleaning system
  • cGMP-compliant design

The ability to customize both lance length and nozzle type makes the XM015-E highly flexible and effective across a wide range of applications.

Main Technical Features

  • Operating pressure up to 10 bar
  • Flow rate up to 15 l/min
  • 24V DC electric motor
  • Customizable lance length
  • 2–4 nozzle configuration
  • Self-cleaning structure

Installation, Maintenance and Certifications

La XM015-E è facilmente integrabile nei macchinari esistenti.


Non richiede alcun tipo di lubrificante e la manutenzione è limitata alle sole parti soggette a usura, garantendo semplicità gestionale e affidabilità nel tempo.


È fornita con:

  • Certificazione CE

Se stai cercando una testina rotante volumetrica compatta con motore elettrico 24V DC e controllo della velocità, adatta al lavaggio di piccoli contenitori in ambienti regolamentati, la XM015-E rappresenta una soluzione tecnica precisa e altamente versatile.


Il team di Bolondi è a disposizione per aiutarti a configurare la soluzione più adatta o sviluppare versioni personalizzate in base alle esigenze del tuo impianto.

Product details
Materials
Seals: EPDM – Bushings: PEEK; AISI 316
Inlet hole
2 nozzles Ø57 mm – 4 nozzles Ø66 mm
Full cycle duration
1 min
Motor
Electric motor 24V DC
Weight
7.5 kg
Technical information
Pressure
10 - 10 bar
Flow rate
10 - 80 l/min
Product details
Materials
Seals: EPDM – Bushings: PEEK; AISI 316
Inlet hole
2 nozzles Ø57 mm – 4 nozzles Ø66 mm
Full cycle duration
1 min
Motor
Electric motor 24V DC
Weight
7.5 kg
Technical information
Pressure
10 - 10 bar
Flow rate
10 - 80 l/min
