XM200-E
Electrical
XM200-E
Volumetric Rotating Cleaning Head with Electric Drive for Controlled Cleaning of Closed Containers
When it comes to internal cleaning of closed containers, one of the main challenges is maintaining real and consistent process control, regardless of operating conditions.
The XM200-E is specifically designed to address this need, providing a reliable, precise solution suitable even for highly regulated environments.
Type
Low pressure
Motorized or self-rotating rotary head, designed to operate without oils or grease. Cleaning is performed at low pressure using 2 or 4 nozzles. Side inlet for electric and pneumatic versions; coaxial inlet for the water-driven (aquamotor) version.
Electrical
Certification
Motor
Why choose XM200-E
Unlike traditional cleaning heads, the XM200-E is driven by an electric motor, making the rotation speed completely independent of water flow rate.
This ensures:
- consistent performance even with flow variations
- improved control of the cleaning cycle
- more uniform and repeatable results
- optimized use of time and resources
For operators in pharmaceutical, food, cosmetic, or chemical industries, this translates into more reliable and easily validated processes.
Ideal Applications
The XM200-E is specifically designed for internal cleaning of:
- closed containers
- IBCs (Intermediate Bulk Containers)
- mixers
- tanks and vessels

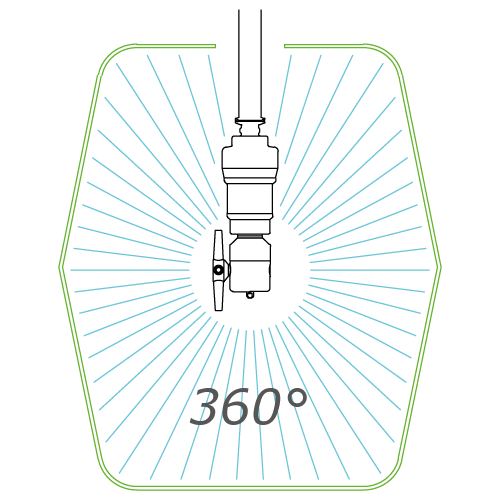

Its configuration ensures effective coverage of all internal surfaces with high precision.
Concrete advantages for the operator
Every system has different requirements. The XM200-E is fully configurable to adapt to specific applications:
- Interchangeable exposed nozzles, selectable according to cleaning needs
- Configuration with 2 or 4 nozzles
- Wide range of electric motor voltage options
- Compatible with pumps up to 200 l/min
This flexibility allows the cleaning system to be tailored without compromise.
Main Technical Features
- Operating pressure: up to 10 bar
- Flow rate: up to 200 l/min
- Configurable head with 2 or 4 nozzles
- Electric motor independent from water flow
- cGMP-compliant design
- CE certification
Installation, Maintenance and Certifications
The XM200-E is designed to ensure operational continuity and ease of management:
- no use of lubricants
- maintenance limited to standard wear components
- robust construction for intensive use
This results in reduced downtime and lower operating costs.
The Right Solution When Control Matters
If your goal is to achieve precise, consistent internal cleaning independent of system variables, the XM200-E is an extremely effective solution.
Contact Bolondi Team
Every application has its own specific requirements. The Bolondi team can support you in:
- configuring the XM200-E according to your system
- evaluating alternative or complementary solutions
- developing fully customized cleaning systems
Contact the Bolondi team to find the solution best suited to your needs.
Product details | |
|---|---|
Nozzles | M16×1 |
Seal materials | EPDM |
Bushing materials | PEEK |
Structure materials | AISI 316 |
Inlet hole | Ø 185 mm |
Full cycle duration | 1 min |
Motor | Available electric motors:
24 V AC/DC 0.30 A
48 V 50 Hz 1ph 1.15 A
230 V 50 Hz 1ph 0.23 A
400 V 50 Hz 3ph 0.10 A |
Weight | 7.5 kg |
Max temperature | 90 °C |
Technical information | |
|---|---|
Pressure | 10 - 10 bar |
Flow rate | 3 - 200 l/min |
Product details | |
|---|---|
Nozzles | M16×1 |
Seal materials | EPDM |
Bushing materials | PEEK |
Structure materials | AISI 316 |
Inlet hole | Ø 185 mm |
Full cycle duration | 1 min |
Motor | Available electric motors:
24 V AC/DC 0.30 A
48 V 50 Hz 1ph 1.15 A
230 V 50 Hz 1ph 0.23 A
400 V 50 Hz 3ph 0.10 A |
Weight | 7.5 kg |
Max temperature | 90 °C |
Technical information | |
|---|---|
Pressure | 10 - 10 bar |
Flow rate | 3 - 200 l/min |
